HVLP Pressure Pots

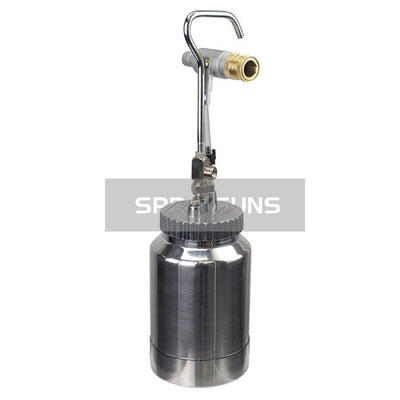

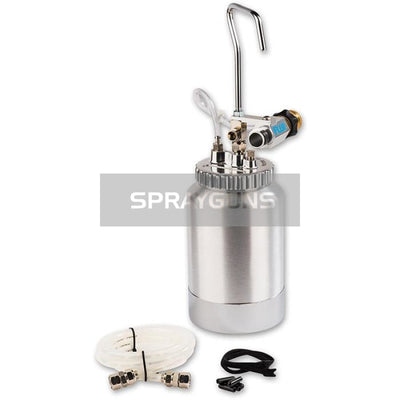

The Q-Tech 2Ltr HVLP remote pressure pot assembly is a versatile pressure feed cup developed to give complete freedom of spray gun and operator movement

Its generous two litre capacity reduces the need for constant cup refills and the gun can be easily manoeuvred in hard to reach areas without the weight and space restriction of a gun mounted suction or gravity cup.

2 Litre capacity reduces the number of cup refills
Allows complete gun manoeuvrability at any angle
Wide reinforced base provides greater stability
Large cup opening for easy cleaning and refilling
Familiar gun grip carry handle and belt hook


Compatible with most HVLP manual spray guns the Q-Tech remote cup provides the answer where complete operator mobility and gun manoeuvrability are essential to the application size and scale. The cup operates from a single air supply line coupled to the inlet at the base of the handle.

The large capacity of the cup reduces the need for constant cup refilling and material can therefore be mixed and thinned in bulk. Suitable for use with virtually all finishing materials the cup's 2.0 bar (30 psi) pressure rating enables higher viscosity coatings to be applied with ease.

For maximum operator comfort the Q-Tech incorporates a unique 'gun grip' carrying handle providing the fit and feel of our industry standard spray guns. Alternatively there is a large removable hook which can be used to hang the cup on the operators waistbelt leaving a hand free to adjust controls

To minimise downtime the Q-Tech features a 'quick spin' easy opening lid with a positive 360° sealing, preventing solvent evaporation and allowing the cup to be used at inverted angles without risk of leakage. A smooth interior and a wide cup mouth allows good hand access for easier cleaning out and faster colour changes.

Controls are convenient and precise, positioned for easy use by right or left handed sprayers. An adjustable self relieving regulator and accurate pressure gauge are protected by a solvent resistant check valve to prevent paint clogging. For total operator safety an automatic shut-off valve ensures the cups maximum pressure is never exceeded.

Your Maxim II spray gun in pressure feed configuration is far more manoverable allowing tight corners to be coated easier as the restriction of the paint pot underneath the spray gone is removed. Includes material/paint line from the pot to the spray gun, the whip hose supplied with FC9900's acts as the air supply hose from the remote pot to the spray gun.

Any turnbine which doesn't have a whip hose will need to source one.
