Anest Iwata
The Anest Iwata product range includes several spray guns, pumps and accessories that, based on their specifications, are useful during different painting phases and in different application fields, and that can consequently satisfy any need. The body shop, wood, leather and plastic, are just a few of the industrial sectors which can be supported by Anest Iwata products and our advice.

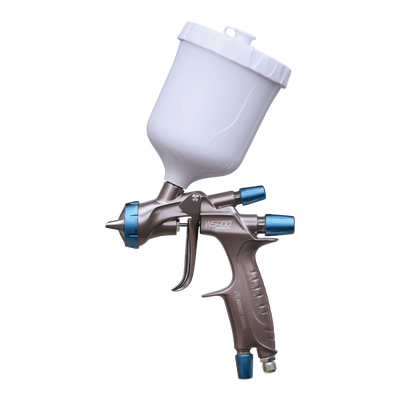

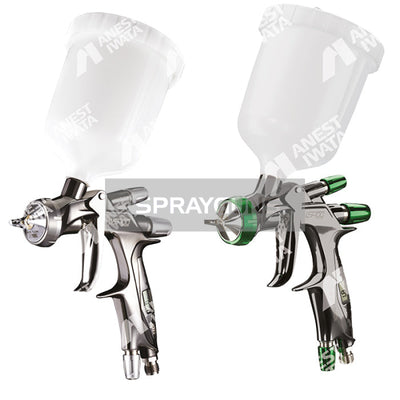

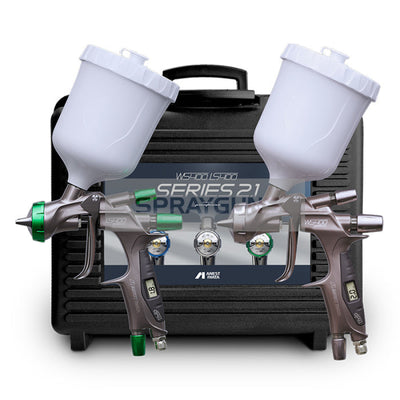

SERIES 2: Redefining paint application
The Series 2 WS400 / LS400 range raises the standard of paint application, Anest Iwata continues to seek perfection and even closer to that goal with the Series 2.
The combination of Pininfarina's ergonomic design and the optimised pre-atomisation capabilities of our split nozzle 2.0, the Series 2 range takes takes paint application to a new level.
The Series 2 WS400 / LS400 range raises the standard of paint application, Anest Iwata continues to seek perfection and even closer to that goal with the Series 2.
The combination of Pininfarina's ergonomic design and the optimised pre-atomisation capabilities of our split nozzle 2.0, the Series 2 range takes takes paint application to a new level.
WS-400 CLEAR: HD stands for High Delivery, The HD nozzles make the application of clear coats effortless. Split NozzleTM 2.0 technology breaks up the clearcoat in a way that standard nozzles cannot, giving the painter an unrivalled experience.

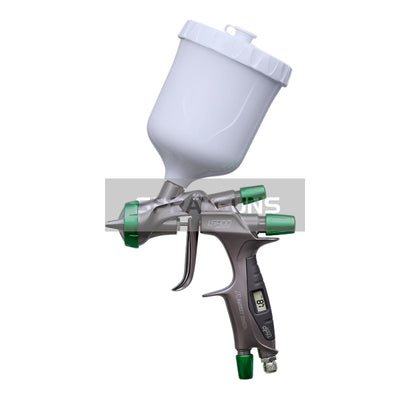

LS-400 BASE: The new LS-400 Base is a unique HVLP Hybrid spray gun designed for the application of both water-borne and solvent-based basecoats. LS-400 Base comes in two nozzle variants, ET and ETS.
Other improvements include:
• Hard wearing twilight chrome finish
• Linear fan and fluid adjustment system
• Refined trigger action
• Double tapered thread system
• The all new HVC inline pressure regulator is recommended
The Iwata W200 Suction Spray Gun is lightweight, full size, has low air volume, superior atomization and is a general purpose spray gun with high transfer efficiency control.
The new W-200 Integra Suction is designed for easy maintenance with few deeper and coarser thread pitches on the air caps this means only one and half turns is required to remove the cap for cleaning. Also, the back of the needle has been reshaped to make it easier to remove and re-attach. In addition, the W-200 Integra has a new linear fan adjuster for an even greater and more responsive fine incremented adjustment, this new feature also helps when precise adjustment is needed and a faster full fan to spot is required for those difficult to reach areas. The linear pattern adjustment set reduces around 35% on the first turn, 50% after one and half turns and 70% after two turns which makes the gun more responsive and adaptable in all conditions.
- High Transfer efficiency greater than 65% onto the job
- High atomisation
- Even paint coverage & fast operation
- Light weight ergonomic design
- Ideal for Waterborne materials
- Perfect for medium to large paint jobs.
Experience the epitome of luxury and performance, with the LPH-80 Luxury edition!
LPH-80 LUXURY EDITION
The LPH-80 is a Premium Quality Spray Gun for Spot Repair Applications. Specially designed for small repair work and hard-to-reach areas, with an ability to keep repairs small and compact. Suitable for all products including primer, basecoat and clearcoat.
Fine compact atomisation makes working on small repair work a breeze compared to full-size spray guns which produce a wetter and unrefined result. Fan patterns can be made as small as 1cm with a maximum size of 15cm, making the LPH-80 highly versatile.
Stone chips, scuffs, bumper repairs, interior, leather, and wheel repairs are just a few of the tasks the LPH-80 can handle. The LPH-80 has an extremely low air consumption meaning it can run on small compressors, over-spray and material usage are considerably lower than a full-size spray gun the LPH-80 only uses 60 Nl/min. This makes the LPH-80 ideal for mobile repairers and technicians on the go.
Available in nozzle sizes 1.0mm and1.2mm provides an even greater window of application, 1.0mm – 1.2mm nozzle sizes are excellent all-rounders that can handle a great variety of products.
Features:
- Designed for spot and smart repair.
- Optimised fan pattern easily wets up panels and lays clearcoat perfectly.
- Atomisation is best in class giving even droplet distribution and uniform size.
- Consistent fan pattern control and versatility when going from spot to full fan.
- Maximum performance and colour matching result in correct results the first time.
- Highly versatile set-up options for any application or repair work.
What's included:
- Luxury Edition LPH-80
- 70cc black gravity cup
- 250cc black gravity cup
- Maintenance grease
- LPH-80 Spanner
- Cleaning brushes
- 250cc gravity cup adapter
- Airline fitting
The use of short wave infrared technology enables body fillers, primers and paints to be cured in typically 10 minutes as opposed to 45 minutes in an oven. Anest Iwata Infra-Red mobile drying systems provide a fast and efficient answer for all your local body repairs.
Infra-Red units provide a cost effective method of paint drying. Curing can be achieved in just minutes, using the highly effective short wave infra-red lamp.
The 1KW heater can be held by hand using the handle supplied or can be fixed to the H-Stand at your desired height using the bracket supplied.
Technical Specifications
Heat T.E.C 1kW
Minimum Static Operating Distance: 500mm (when mounted on its stand)
Dimensions: 400 x 140 x 85mm
Electrical Specification: 220/240V 1kW 50Hz
Single Phase – 4.25 amps
Infra-Red units provide a cost effective method of paint drying. Curing can be achieved in just minutes, using the highly effective short wave infra-red lamp.
The 1KW heater can be held by hand using the handle supplied or can be fixed to the H-Stand at your desired height using the bracket supplied.
Technical Specifications
Heat T.E.C 1kW
Minimum Static Operating Distance: 500mm (when mounted on its stand)
Dimensions: 400 x 140 x 85mm
Electrical Specification: 220/240V 1kW 50Hz
Single Phase – 4.25 amps
The new Anest Iwata W200 Integra pressure feed air spray gun is a high quality full-size spray gun designed for use exclusively with paint pressure pots or double diaphragm pumps.
Designed for EASIER MAINTENANCE than most guns on the market having been designed with fewer deeper and coarser thread pitches meaning you only have to turn the air cap one and a half turns for removal. NO BAFFLES needed with this gun so less parts to stock and replace saving you time and money, the INTEGRA also has the tried and tested ONE COMPONENT NEEDLE PACKING cartridge.
Designed with a new LINEAR FAN ADJUSTER for a more responsive finer incremented adjustment which also helps when precise adjustment is needed and a quicker full fan to spot is required. The AIR VALVE SEAT is also new with oversized distribution holes which helps control the balance and performance of the droplets and improves the atomisation properties of the spray gun.
Designed with a new LINEAR FAN ADJUSTER for a more responsive finer incremented adjustment which also helps when precise adjustment is needed and a quicker full fan to spot is required. The AIR VALVE SEAT is also new with oversized distribution holes which helps control the balance and performance of the droplets and improves the atomisation properties of the spray gun.
- FT nozzle
- EXTENDED LIFESPAN with its new internal chrome plating
- SMOOTH RESPONSIVE TRIGGER
- REDESIGNED AIR VALVE SEAT making easy maintenance and reducing the risk of damage from over-tightening
- NEW ERGONOMIC GUN BODY AND DESIGN
- GROOVED NEEDLE END for easier removal
Ideal for premium commercial transport, industrial finishing and fluid transfer.
Spray guns and hoses are also available if required - call us 0114 2706700 if help needed.
Pump Specs:
• Aluminium and alloy construction
• Simple and reliable operation
• 1.5 Bar / 23PSI minimum working pressure
• 6.8 Bar / 98PSI maximum working pressure
• 10 LPM maximum delivery
• 50cc per cycle
• Max 200 cycles per minute
• Weight 4Kg (Pump Only)
• CE certified
• Air pressure circuit conforms to safety standard PREN12621
• PR5 fluid regulator included to ensure smooth constant delivery
This ANEST-IWATA diaphragm paint pump complies to ATEX regulations 94/9/EC. Protection level: II 2 GX Suitable for use in Zones 1 and 2.
We have super reliable super smooth delivery double diaphragm pumps. Ideal for high volume painting demands such as furniture / retail solutions manufacturing, commercial transport and industrial finishing or where ever a large surface area needs coating to a high standard quick time. They are great for basic fluid transfers with a wide range of liquid products. All of our double diaphragm pumps are supplied ready to use complete with pressure gauge, air regulator, fluid delivery regulator, we can also supply complete with both air and fluid lines ranging from 5m to 20m and a choice of pressure fed spray guns.
Pump Specs:
• Aluminium and alloy construction
• Simple and reliable operation
• 1.5 Bar / 23PSI minimum working pressure
• 6.8 Bar / 98PSI maximum working pressure
• 10 LPM maximum delivery
• 50cc per cycle
• Max 200 cycles per minute
• Weight 4Kg (Pump Only)
• CE certified
• Air pressure circuit conforms to safety standard PREN12621
• PR5 fluid regulator included to ensure smooth constant delivery
This ANEST-IWATA diaphragm paint pump complies to ATEX regulations 94/9/EC. Protection level: II 2 GX Suitable for use in Zones 1 and 2.
We have super reliable super smooth delivery double diaphragm pumps. Ideal for high volume painting demands such as furniture / retail solutions manufacturing, commercial transport and industrial finishing or where ever a large surface area needs coating to a high standard quick time. They are great for basic fluid transfers with a wide range of liquid products. All of our double diaphragm pumps are supplied ready to use complete with pressure gauge, air regulator, fluid delivery regulator, we can also supply complete with both air and fluid lines ranging from 5m to 20m and a choice of pressure fed spray guns.
A popular and reliable gravity feed spray gun with high transfer efficiency control and superior atomization
W400 High TEC spray gun, complete with 600ml pot.
A popular and reliable gravity feed spray gun with high transfer efficiency control and superior atomization.
Less overspray means less wastage
Fine atomisation spray pattern
Better paint coverage - faster operation
Light weight ergonomic design - Gun head weighsonly 380g
Suitable for both solvent and some waterborne coatings
Easy to clean chrome body
Ideal for medium to large paint jobs in the auto refinish industry
1.3mm is ideal for automotive clear and direct gloss finishing, 1.4mm as the 1.3mm with faster application. The 1.6mm model is good for light industry applications.
Iwata W300 WB smart repair spray gun. Specially designed for the atomising of water based coatings and this spray gun can also allow a very fine atomisation of solvent based paints.
- Split nozzle atomisation technology
- Specifically designed for blending
- Barely visible transitions due to soft and fine spray
- Very fine atomisation with low air consumption 190l/min
- Extremely low material consumption
- One of the most light weight smart repair spray guns available at only 320g
- Simple operation of the control knobs for left and right handers
- Conical seal nozzle, minimum wear parts
- Quality exterior surface for easy cleaning and maintenance
No matter the requirements the W-400 WBX and WB2 Twin kit can do it all! Basecoat and Clearcoat applications are a breeze.
With the patented Split Nozzle™ Technology, basecoat and clearcoat performance is of the highest standard and provides excellent results for the professional refinisher who demands superior atomisation and flat finishes every time. The W-400 range has also become a fan favourite due to its reliability, ergonomics, and more importantly performance quality.
The W-400 WBX / WB2 Twin Kit streamlines the painting process:
– Smooth trigger action designed to deliver a soft and smooth pull.
– Split Nozzle™ Technology is unmatched in its atomisation capabilities as well as creating the perfect fan pattern every time.
– Lightweight and balanced design offers a comfortable painting experience, reducing painter tiredness and allowing you to work uninterrupted for longer.
– Minimal spare parts, no baffles, seals, and O-rings are needed on a W-400 gun reducing mechanical errors and spare part costs.
Features:
– Superior Basecoat and Clearcoat performance with up to 25% material saving.
– Optimised fan pattern easily wets up panels and lays clearcoat perfectly.
– Atomisation is best in class – even droplet distribution and uniform size.
– Fast application speed with high transfer efficiency.
– WBX is perfect for Basecoat application.
– WB2 is perfect for Clearcoat application.
– The DR5 Air regulator offers precise and accurate pressure readings.
– Carry and protect your spray guns with our hard-wearing carry case.
Anest Iwata 3kW HEAT T.E.C. Infrared Unit (With Distance and Temperature Sensors)
Even heat distribution over the widest possible target area leads to high efficiency and the best paint finish. Anest Iwata has designed the parabolic reflector used in all the infrared drying systems to maximise efficiency. The parabolic reflector gives a totally uniform heat pattern. Efficiency increases of up to 90% are made over conventional systems plus drying time cut from typically 45mins to 10minutes, faster throughput and lower energy costs give a rapid return on investment. Anest Iwata short wave lamps are specifically tuned for paint drying and in normal use will comfortably last 20,000 hours.
Horizontal or vertical cassette operation
Long lamp life of at least 20,000 hours
Locking gas strut to fix arm height
Reduced energy consumption, no fans or filter changes
Manufactured from top quality steel & aluminum
Robustly packaged
Easy to assemble & Install
Easy lamp changes
Low glare lamps for eye safety in the workplace
Horizontal or vertical cassette operation
Long lamp life of at least 20,000 hours
Locking gas strut to fix arm height
Reduced energy consumption, no fans or filter changes
Manufactured from top quality steel & aluminum
Robustly packaged
Easy to assemble & Install
Easy lamp changes
Low glare lamps for eye safety in the workplace
Anest Iwata 3kW HEAT T.E.C. Infrared Unit.
Even heat distribution over the widest possible target area leads to high efficiency and the best paint finish. Anest Iwata has designed the parabolic reflector used in all the infrared drying systems to maximise efficiency. The parabolic reflector gives a totally uniform heat pattern. Efficiency increases of up to 90% are made over conventional systems plus drying time cut from typically 45mins to 10minutes, faster throughput and lower energy costs give a rapid return on investment. Anest Iwata short wave lamps are specifically tuned for paint drying and in normal use will comfortably last 20,000 hours.
Horizontal or vertical cassette operation
Long lamp life of at least 20,000 hours
Locking gas strut to fix arm height
Reduced energy consumption, no fans or filter changes
Manufactured from top quality steel & aluminum
Robustly packaged
Easy to assemble & Install
Easy lamp changes
Low glare lamps for eye safety in the workplace
Horizontal or vertical cassette operation
Long lamp life of at least 20,000 hours
Locking gas strut to fix arm height
Reduced energy consumption, no fans or filter changes
Manufactured from top quality steel & aluminum
Robustly packaged
Easy to assemble & Install
Easy lamp changes
Low glare lamps for eye safety in the workplace
The Anest Iwata AZ1 HTE-2S Concept, High Transfer Efficiency Suction Spray Gun. The newly designed range of air caps from Air Gunsa, are able to develop a long and tulip shaped spray pattern.
The efficiency and new aircap design in the Anest Iwata AZ1 HTE-2S allows even less experienced sprayers to obtain high quality and consistent finishing at budget cost.
- Flat & Long Pattern even spraying heavy materials
- High Transfer Efficiency (HTE Technology)
- Newly Designed Air Caps
- Easy manoeuvrability and improved ergonomics
- High quality & consistent finish
- Complete with 1 litre Suction Pot
The newly designed range of air caps from Air Gunsa, are able to develop a long and tulip shaped spray pattern with an extra fine particles distribution and very little overspray.
